SD Series

SUNNYBATT Deep Cycle Series batteries are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle(deep cycle). The SUNNYBATT Deep-cycle battery uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, which allows for a much longer life in deep cycle applications.

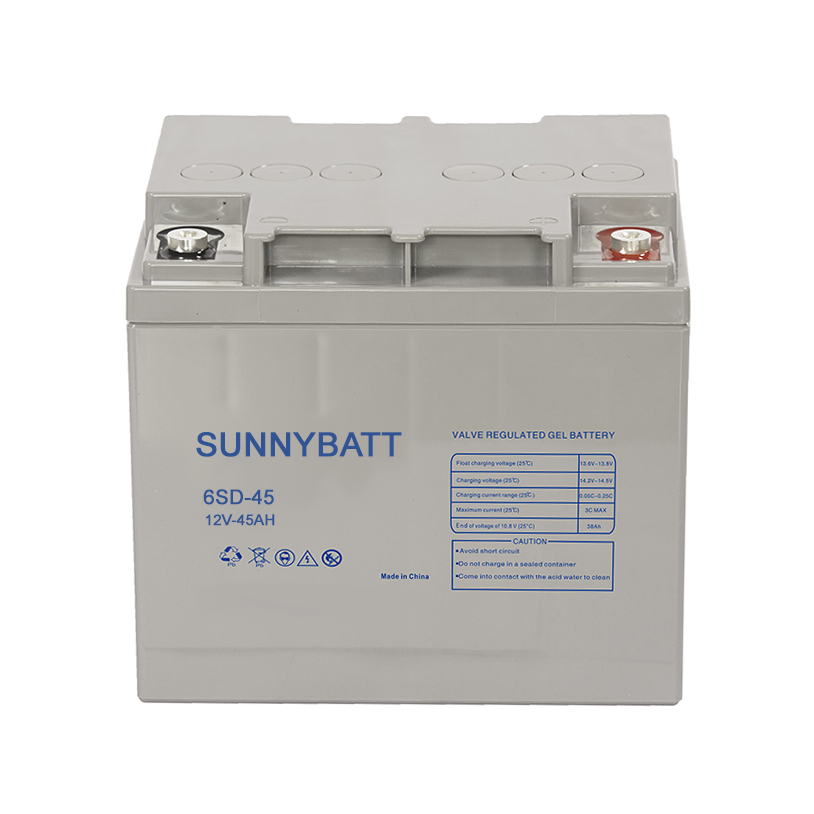

SD Series battery

Applications

Solar System
Wheelchair
Marine Equipment
Power Station
Railway Systems
Telecom Systems

Available Models

SD Series battery models and technical specifications
TypeNominalLengthWidthHeightTotalWeightDatasheet
Voltage(V)Capacity(A)mminmminmminHeight(Kg)
3SD180618030612.051686.612208.6622528.6Not Available
3SD20062002409.451857.2827510.8327532.5Download PDF
3SD225622532012.61766.932258.8623030.5Download PDF
6SD3312331957.681305.121556.116811Download PDF
6SD401240197.57.78165.56.521706.6917014.7Download PDF
6SD451245197.57.78165.56.521706.6917014.6Download PDF
6SD5512552299.021385.432088.1921318.5Download PDF
6SD60126025810.161666.542068.1121524Download PDF
6SD65126535013.781676.571797.0517923.4Download PDF
6SD75127525810.161666.542068.1121124Download PDF
6SD80128035013.781676.571797.0517922.5Download PDF
6SD90129030612.051696.652108.2721529Download PDF
6SD1001210033012.991716.732158.4622032Download PDF
6SD1201212041016.141766.932248.9422436Download PDF
6SD1351213534113.431736.8128311.1428740Not Available
6SD1501215048218.981706.692409.4524047Download PDF
6SD2001220052220.552389.372188.5822365Download PDF
6SD2301223052020.4726910.592037.9920872.6Download PDF
